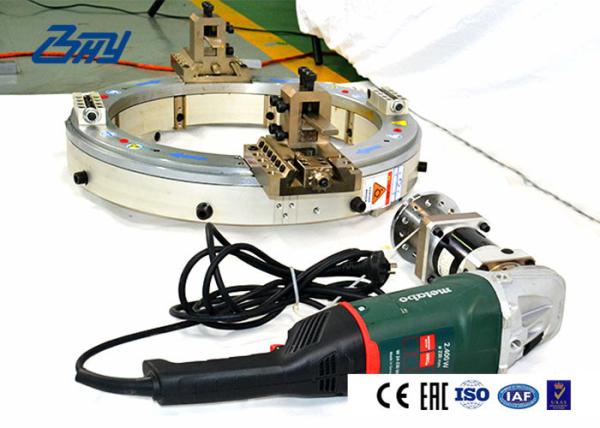

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive

Brand Name : BHY

Model Number : SFM6072E

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Model : SFM6072E

Drive Mode : Electric

Place : Suzhou city, Jiangsu Province, P.R.China

Structure : Split frame structure

Cutting tools : Clip-type, ordinary cutting tools

Beveling tools : Clip-type, ordinary beveling tools

Contact Now

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive Mode

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive

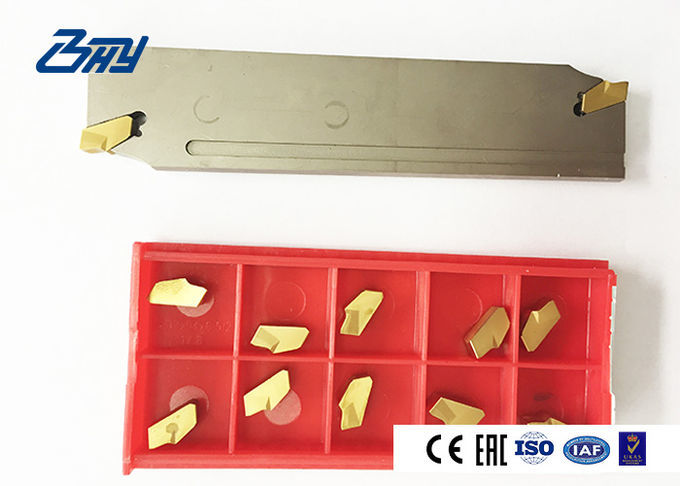

SFM Tools

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive

Models Dimension

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model	A (mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)
SFM0206	176	70	122	176	225	253	164
SFM0408	228	70	122	176	225	253	164
SFM0612	332	70	122	176	225	253	164
SFM0814	364	70	122	176	225	253	164
SFM1218	468	70	122	176	225	253	164
SFM1420	518	70	122	176	225	253	164
SFM1824	622	102	98	176	235	253	174
SFM2026	674	102	98	176	235	253	174
SFM2430	776	102	98	176	235	253	174
SFM2632	826	102	98	176	235	253	174
SFM3036	928	102	98	176	235	253	174
SFM3238	1006	102	98	176	235	253	174
SFM3642	1082	102	98	176	235	253	174
SFM4248	1236	102	98	176	235	253	174
SFM3648	1296	140	220	276	235	253	174
SFM4860	1600	140	220	276	235	253	174
SFM6072	1905	140	220	276	235	253	174
SFM7284	2210	140	220	276	235	253	174

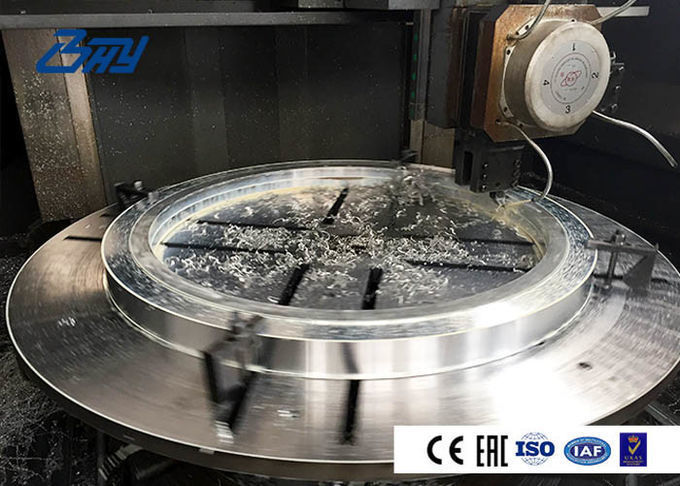

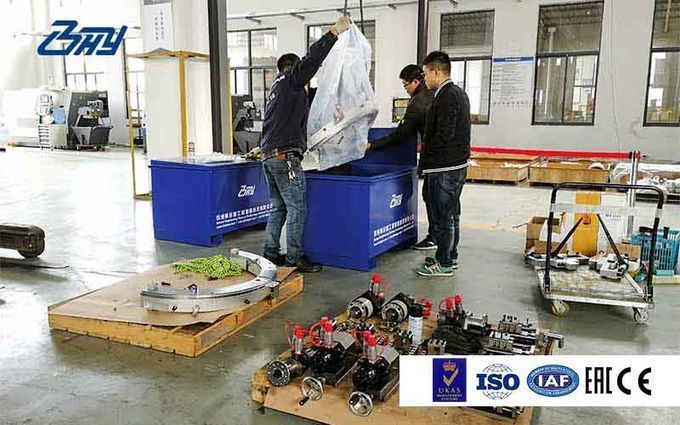

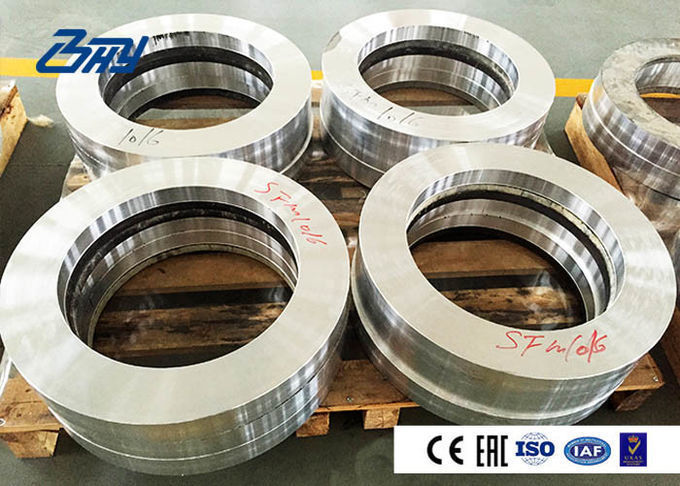

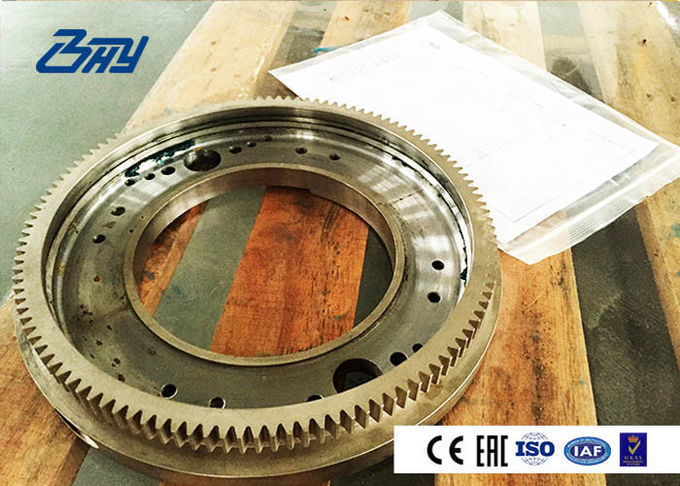

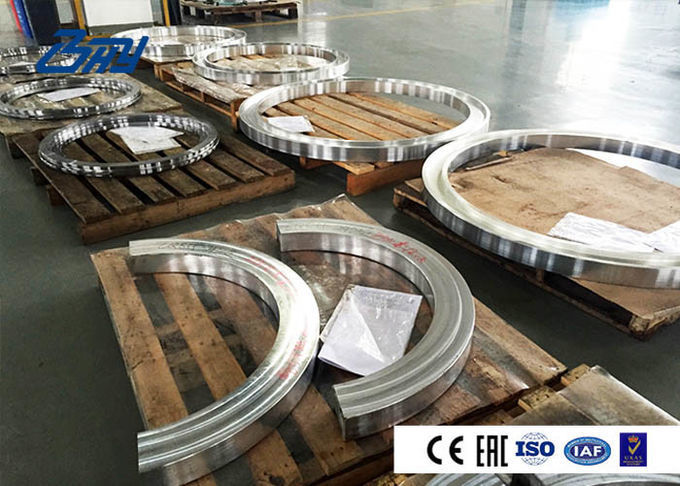

Manufacture

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive

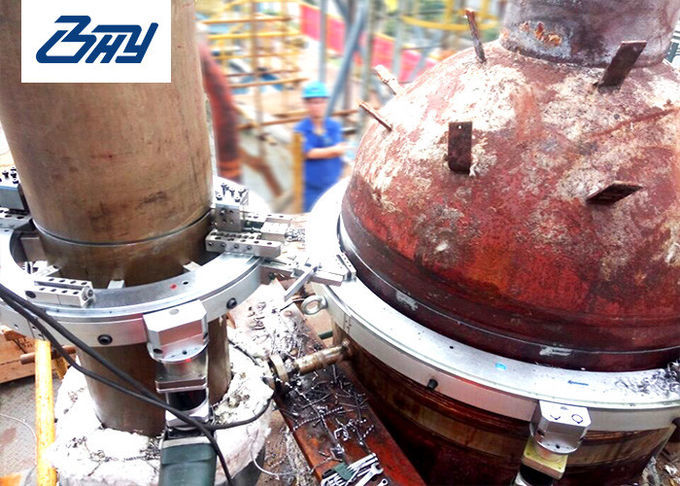

Working on site

■ Project: chemical plant repaire

■ Pipe material: 5CrMoR+00Cr19Ni10

■ Pipe O.D.: 1219mm, 350mm

■ Pipe thickness: 59mm, 30mm

Out Mounted Portable Pipe Cutting And Beveling Machine Electric Drive
